Brekel Face v1

For Kinect for Windows v1 & Kinect for XBox360 sensor

Download Trial / Buy

FAQ

Videos

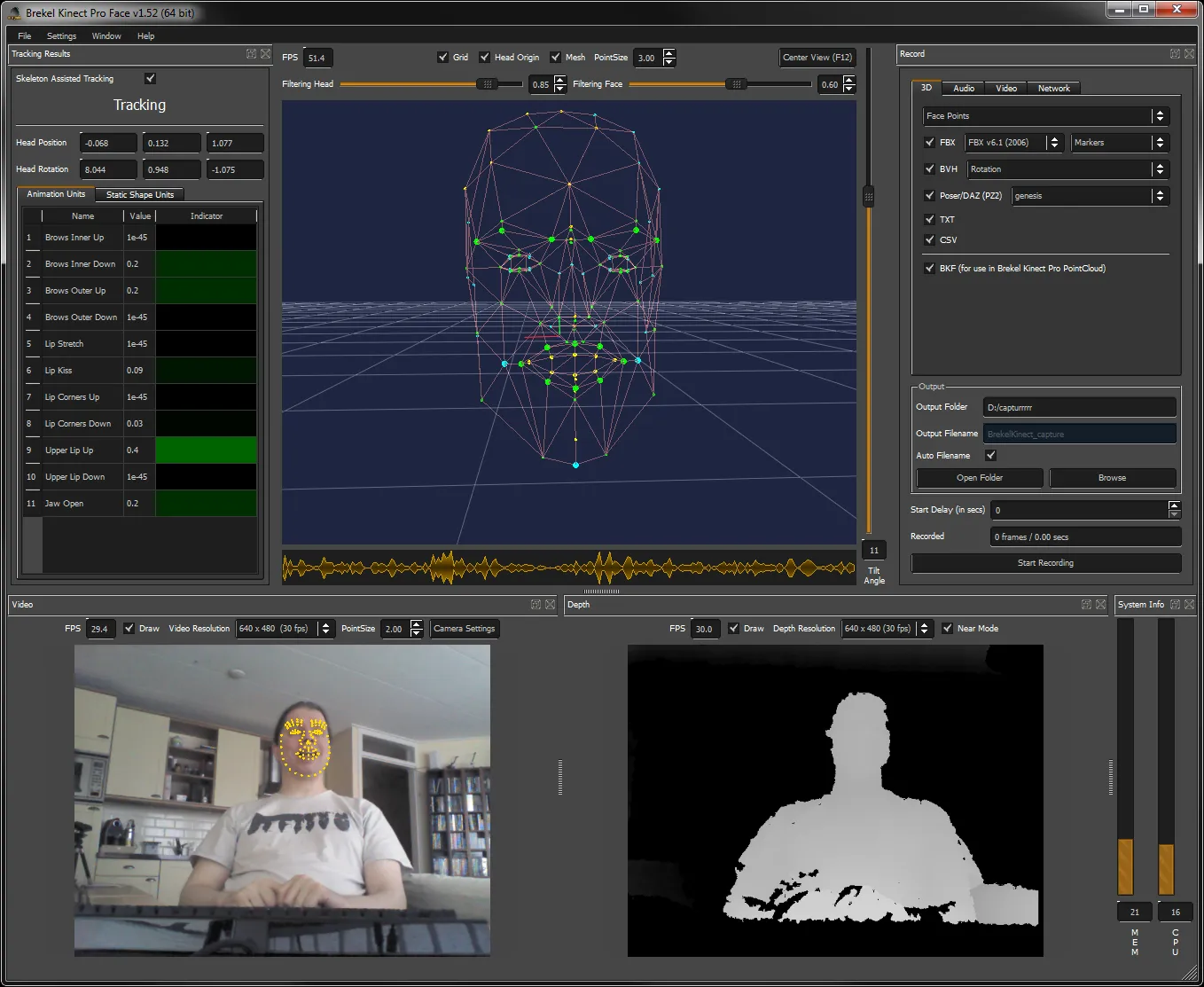

Brekel Face v1 is a Windows application that enables 3D animators to record and stream 3D face tracking data using a Microsoft Kinect sensor.

  • 3D head position and rotation
  • 11 animation units for driving blend/morph shapes
  • 3D markers of a template mesh to drive position controllers
  • 11 shape units describing the structure of the face (mouth width, eye separation etc)
  • comes with example rig (in FBX format) with matching blendshapes / morph targets
  • Directly record 3D data to industry standard FBX format
  • Directly record to Poser/DAZ compatible .PZ2 format
  • Directly record 3D data to text files
  • Export Audio/Video in standard WAV and AVI format
  • Visualize all the data streams in realtime in an easy to use GUI
  •  No markers, makeup or calibration required
  • Apply user adjustable filtering/smoothing to the data on the fly
  • functionality to stream and record directly to Autodesk MotionBuilder using included plugins
  • functionality to stream directly to the Unity3D engine using included example C# script (will need adjustments for your own rig)
  • functionality to live stream directly to Unreal Engine 4.x & 5.x using included example scene
  • functionality to stream shape and point data over OSC (Open Sound Control) to other apps
  • Comes with Maya MEL example script for importing text file format
